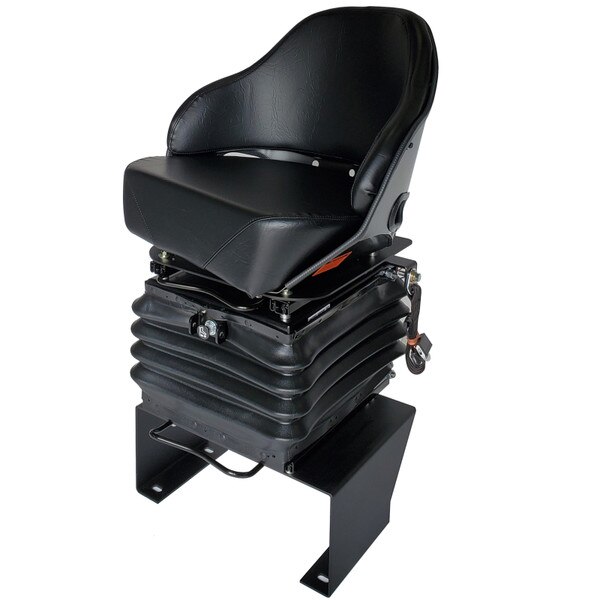

Scraper Seat, Model 7000SC, 24V Super Duty Air Suspension Seat - High Profile. 500 Lb. Rated, SAE J386 Compliant. Caterpillar Scraper Seat Applications

The IRON HORSE 7000SC Scraper Seats for CAT Scrapers - High Profile Bracket.Features the exclusive SUPER DUTY 500 lb rated suspension for scrapers. It's the "800lb Gorilla" of air suspensions - period. Constructed of 7 gauge steel, upper and lower suspension plates. The levers are 3/8" thick steel! Smooth riding, built to last and Made in the USA. The optional adjustable damper is a must to accommodate and wide range of operators. . Fitted with a heavy duty barrel seat. Direct bolt-in replacement for Caterpillar Scraper Seats. Meets or exceeds all OEM quality standards. Pull Tested & Complies with SAE J386.

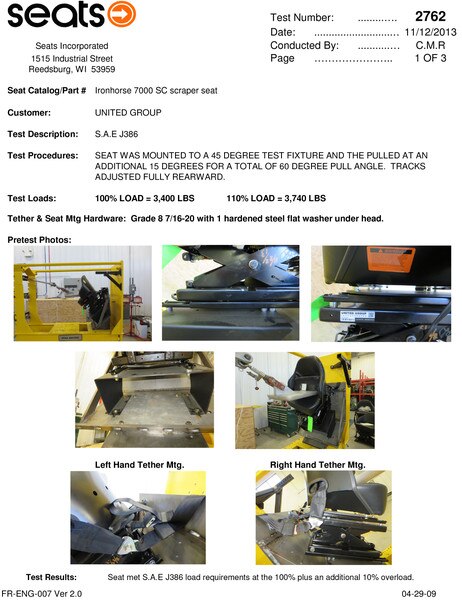

Important! Many aftermarket seat suppliers do not pull test and validate their scraper seats. IRON HORSE Scraper Seats are engineered for scraper applications. Our scraper seats are pulled to a 3740 lb. load with tethers as required by the SAE J386 standard. To prove the standalone strength of our design, we then remove the tethers and repull the seat to the same 3740 lbs. and re-pass the test. You can have confidence that our seats are up to the challenge. We don’t simply add a bracket and call it a scraper seat.

Standard Features:
• Super Duty 24V Air Suspension Scraper Seat
• Black Vinyl Trim
• Barrel Seat

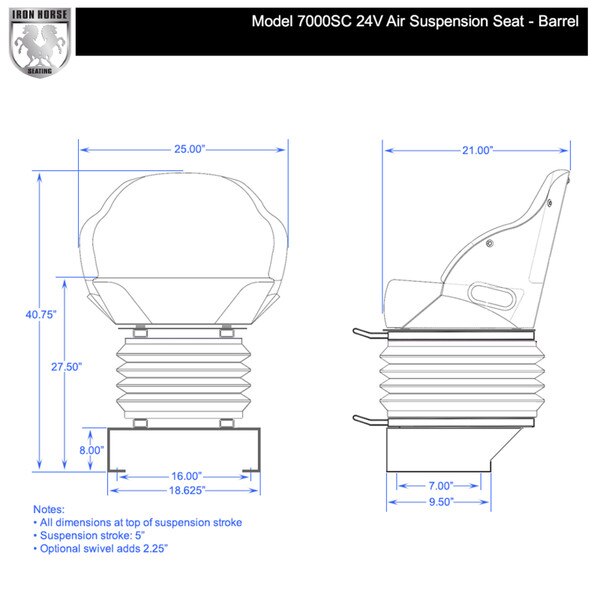

• Mounting pattern: 16" x 7", High Profile Bracket
• Adjustable Tether belts
• Weight Rating: 500 lbs.

Optional Features:

• Variable Shock Damper. Allows for dialed-in ride comfort by adjusting a knob vs. standard non-adjustable shock damper IHH-ADJ-SHOCK-K
• Heavy Duty Turntable
• Adjustable shock damper
• 3" Seatbelt
Other Information:
• SAE J386 Compliant
