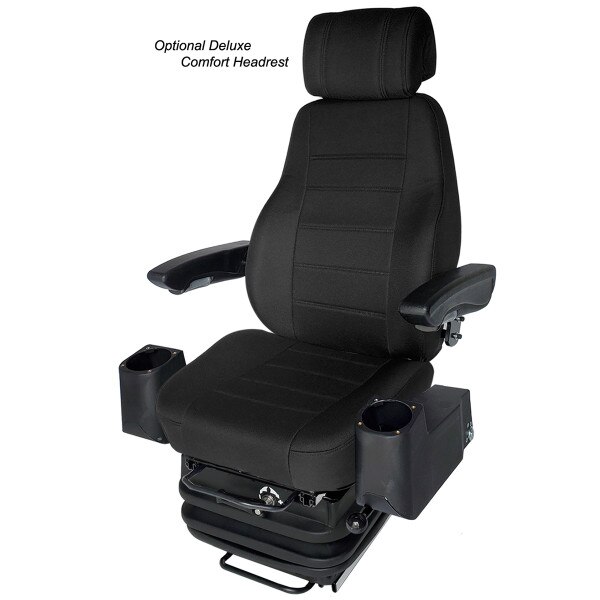

Deluxe Joystick Pod Seat - Heavy Duty, IRON HORSE 5500P Pod Seat, HD Mechanical Suspension, Highback Profile
Joystick Pod Seat, heavy duty mechanical suspension seat with composite pod housings for overhead cranes, mining machines and drag-lines. Body contoured cushions, enhanced with adjustable lumbar to support the natural S-curve of your back. The seat cushion with Elastomeric Vibration Control (EVC) helps to insulate operators from vibration. Trimmed in premium black fabric. Rugged steel construction for years of service life. Meets or exceeds all OEM quality standards.
Standard Features:
• Heavy Duty Mechanical Suspension Seat
• Composite Pods feature Left Side Tilt-Up Pod
• Highback Profile (Reclines 73º / Forward 62º)
• Seat Cushion with Elastomeric Vibration Control (EVC)
• Mechanical Lumbar Adjustment
• Premium Fabric Trim
• Tilt-Up Armrests
• Mounting pattern: 260mm wide x Multiple
• Weight Rating: 340 lbs.
Engineering/Design Overview:
• Suspension and seat frame structure is based on steel stampings and welded assemblies.
• Tight tolerance design for minimal free-play.
• Upper and lower suspension stampings are 10 gauge mild steel (.135”).
• Heavy duty suspension levers are 5/16” thick steel with welded cross brace.
• Heavy duty 1 5/8” diameter damper.
• 1” OD Nylon rollers and bearings for quiet operation and long service life.
• Machined steel components (no diecast zinc) and ball-bearing race integrated into weight adjuster for smooth handle turning.
• 10.9 grade hardware throughout suspension structure.
• Welds performed by CNC programable robots.
• Foams are injected molded – hard tooled, for part to part consistency.
• Cut-n-Sew trim is CNC cut for uniform/tight fit.
Optional Features:
• Standard or Deluxe Comfort Headrest (DCH) Headrest
• Seatbelts
• 24V Air Suspension
Other Information:
• SAE J2292 Compliant

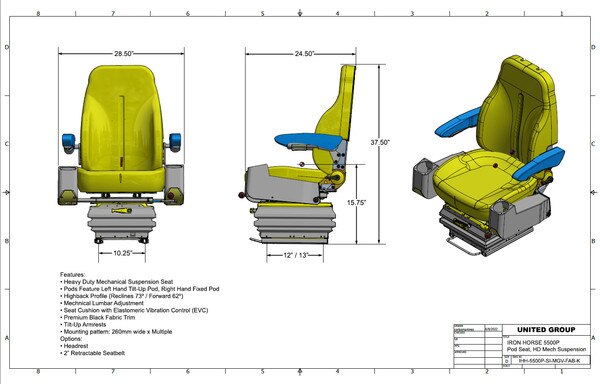

• 3D model available upon request
Standard Features:
• Heavy Duty Mechanical Suspension Seat
• Composite Pods feature Left Side Tilt-Up Pod
• Highback Profile (Reclines 73º / Forward 62º)
• Seat Cushion with Elastomeric Vibration Control (EVC)
• Mechanical Lumbar Adjustment
• Premium Fabric Trim
• Tilt-Up Armrests
• Mounting pattern: 260mm wide x Multiple
• Weight Rating: 340 lbs.
Engineering/Design Overview:
• Suspension and seat frame structure is based on steel stampings and welded assemblies.
• Tight tolerance design for minimal free-play.
• Upper and lower suspension stampings are 10 gauge mild steel (.135”).
• Heavy duty suspension levers are 5/16” thick steel with welded cross brace.
• Heavy duty 1 5/8” diameter damper.
• 1” OD Nylon rollers and bearings for quiet operation and long service life.
• Machined steel components (no diecast zinc) and ball-bearing race integrated into weight adjuster for smooth handle turning.
• 10.9 grade hardware throughout suspension structure.
• Welds performed by CNC programable robots.
• Foams are injected molded – hard tooled, for part to part consistency.
• Cut-n-Sew trim is CNC cut for uniform/tight fit.
Optional Features:
• Standard or Deluxe Comfort Headrest (DCH) Headrest
• Seatbelts
• 24V Air Suspension
Other Information:
• SAE J2292 Compliant
• 3D model available upon request
Replacement seat for excavators. Contact an Industrial Seats Application Specialist if you have questions on seat-to-machinery fitment. (800) 223-7003.
